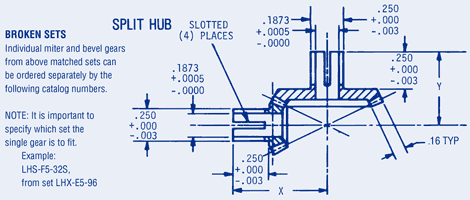

Miter & Bevel Gears-Split Hub-Broken sets 64 Pitch
|
|
| NOTE: THIS IS A SPLIT SET - ONLY ONE GEAR WILL BE SUPPLIED. For a matched set remove S from p/n. For -30S specify what set this will be used with. Aluminum gears anodized before gear cutting. | |
- T= Number of Teeth
- PD = Pitch Diameter
- M= Material
| Part | Number of Teeth | Pitch Diameter | Material | |
|---|---|---|---|---|
| Buy | View | |||
| LHA-F5-32S | 32 | .500 | 2024-T4 Aluminum | |
| LHA-F5-48S | 48 | .750 | 2024-T4 Aluminum | |
| LHA-F5-64S | 64 | 1.000 | 2024-T4 Aluminum | |
| LHA-F5-96S | 96 | 1.500 | 2024-T4 Aluminum | |
| LHA-F5-128S | 128 | 2.000 | 2024-T4 Aluminum | |
| LHS-F5-32S | 32 | .500 | 303 Stainless Steel | |
| LHS-F5-48S | 48 | .750 | 303 Stainless Steel | |
| LHS-F5-64S | 64 | 1.000 | 303 Stainless Steel | |
| LHS-F5-96S | 96 | 1.500 | 303 Stainless Steel | |
| LHS-F5-128S | 128 | 2.000 | 303 Stainless Steel | |
