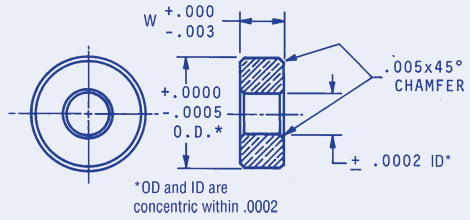

Oil Impregnated Bronze Bearing, Precision, Inch, plain
|
|
- W = Width
- ID = Inside Diameter
- OD = Outside Diameter
- M= Material
| Part | Width | Inside Diameter | Outside Diameter | Material | |
|---|---|---|---|---|---|
| Buy | View | Bronze | |||
| AHB-A1-1 | .0937 | .0781 | .2500 | Bronze | |
| AHB-A1-2 | .1094 | .0937 | .3125 | Bronze | |
| AHB-A1-3 | .0937 | .1250 | .2500 | Bronze | |
| AHB-A1-4 | .1094 | .1250 | .3125 | Bronze | |
| AHB-A1-5 | .1562 | .1250 | .3750 | Bronze | |
| AHB-A1-6 | .1562 | .1875 | .5000 | Bronze | |
| AHB-A1-7 | .1960 | .1875 | .5000 | Bronze | |
| AHB-A1-8 | .1960 | .2500 | .6250 | Bronze | |
