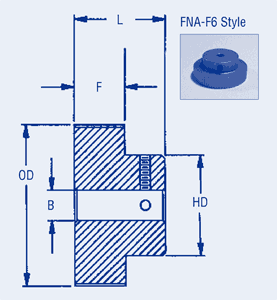

Timing Belt Pulleys 3mm Pitch GT Ser. (15mm wide) Unflanged

Timing Belt Pulleys 3mm Pitch GT Ser. (15mm wide) Unflanged
  • G = No. of Grooves
  • B = Bore +.001
  • OD = Outside Diameter
  • F = Face Width
  • HD = Hub Diameter +/-1/64
  • L = Length +/-1/64
  • SS = Screw Size
  • PD = Pitch Dia.
Material: Aluminum Alloy
  • G = No. of Grooves
  • B = Bore +.001
  • OD = Outside Diameter
  • F = Face Width
  • HD = Hub Diameter +/-1/64
  • L = Length +/-1/64
  • SS = Screw Size
  • PD = Pitch Dia.
Part No. of Grooves Bore +.001 Outside Diameter Face Width Hub Diameter +/-1/64 Length +/-1/64 Screw Size Pitch Dia.
Buy View .31300 .73600 1.25000 1.11100 #8-32
FNA-F6-50 50 .313 1.850 .736 1.250 1.111 #8-32 1.880
FNA-F6-56 56 .313 2.075 .736 1.250 1.111 #8-32 2.105
FNA-F6-62 62 .313 2.301 .736 1.250 1.111 #8-32 2.331
FNA-F6-68 68 .313 2.527 .736 1.250 1.111 #8-32 2.557
FNA-F6-74 74 .313 2.752 .736 1.250 1.111 #8-32 2.782
FNA-F6-80 80 .313 2.978 .736 1.250 1.111 #8-32 3.008
