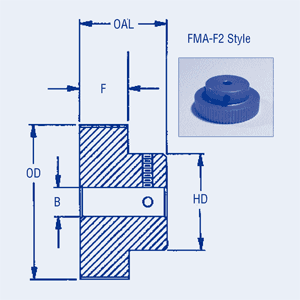

Timing Belt Pulleys 2mm Pitch GT Series Unflanged
|
|
| Material: Aluminum Alloy. Two set screws 90 degrees apart. | |
- G= No. of Grooves
- B = Bore +.001
- OD = Outside Diameter
- F = Face Width
- HD = Hub Diameter +/-1/64
- OAW = Overall Width +/-1/64
- SS= Screw Size
- PD = Pitch Dia.
| Part | No. of Grooves | Bore +.001 | Outside Diameter | Face Width | Hub Diameter +/-1/64 | Overall Width +/-1/64 | Screw Size | Pitch Dia. | |
|---|---|---|---|---|---|---|---|---|---|
| Buy | View | .37500 | .75000 | #8-32 | |||||
| FMA-F3-62 | 62 | .250 | 1.534 | .375 | 1.148 | .750 | #8-32 | 1.554 | |
| FMA-F3-68 | 68 | .250 | 1.684 | .375 | 1.185 | .750 | #8-32 | 1.704 | |
| FMA-F3-74 | 74 | .250 | 1.835 | .375 | 1.215 | .750 | #8-32 | 1.855 | |
| FMA-F3-80 | 80 | .313 | 1.985 | .375 | 1.500 | .750 | #8-32 | 2.005 | |
