Socket Head Screws - Self Locking, Inch

Socket Head Screws - Self Locking, Inch

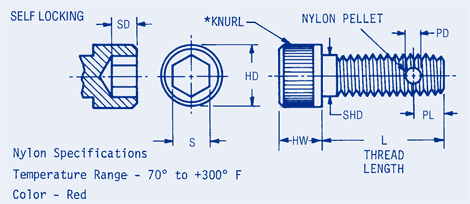

  • TH= Thread
  • HD = Head Diameter
  • HW = Head Width
  • SHD = Shoulder Diameter
  • S = Socket Diameter
  • SD = Socket Depth
  • PD = Pellet Diameter
  • PL = Pellet Location
  • L = Length
300 series stainless steel with nylon pellet. Class 3A thread.
  • TH= Thread
  • HD = Head Diameter
  • HW = Head Width
  • SHD = Shoulder Diameter
  • S = Socket Diameter
  • SD = Socket Depth
  • PD = Pellet Diameter
  • PL = Pellet Location
  • L = Length
Part Thread Head Diameter Head Width Shoulder Diameter Socket Diameter Socket Depth Pellet Diameter Pellet Location Length
Buy View
DKX-N1-1 #0-80 .096 .060 .060 .050 .025 .022 .031 1/8
DKX-N1-2 #0-80 .096 .060 .060 .050 .025 .022 .031 3/16
DKX-N1-3 #0-80 .096 .060 .060 .050 .025 .022 .031 1/4
DKX-N1-4 #0-80 .096 .060 .060 .050 .025 .022 .031 5/16
DKX-N1-5 #0-80 .096 .060 .060 .050 .025 .022 .031 3/8
DKX-N2-1 #2-56 .140 .086 .086 .078 .038 .030 .063 1/8
DKX-N2-2 #2-56 .140 .086 .086 .078 .038 .030 .063 3/16
DKX-N2-3 #2-56 .140 .086 .086 .078 .038 .030 .063 1/4
DKX-N2-4 #2-56 .140 .086 .086 .078 .038 .030 .063 5/16
DKX-N2-5 #2-56 .140 .086 .086 .078 .038 .030 .063 3/8
DKX-N2-6 #2-56 .140 .086 .086 .078 .038 .030 .063 7/16
DKX-N2-7 #2-56 .140 .086 .086 .078 .038 .030 .063 1/2
DKX-N3-2 #4-40 .183 .112 .112 .094 .051 .063 .093 3/16
DKX-N3-3 #4-40 .183 .112 .112 .094 .051 .063 .093 1/4
DKX-N3-4 #4-40 .183 .112 .112 .094 .051 .063 .093 5/16
DKX-N3-5 #4-40 .183 .112 .112 .094 .051 .063 .093 3/8
DKX-N3-6 #4-40 .183 .112 .112 .094 .051 .063 .093 7/16
DKX-N3-7 #4-40 .183 .112 .112 .094 .051 .063 .093 1/2
DKX-N4-2 #6-32 .226 .138 .138 .109 .064 .080 .109 3/16
DKX-N4-3 #6-32 .226 .138 .138 .109 .064 .080 .109 1/4
DKX-N4-4 #6-32 .226 .138 .138 .109 .064 .080 .109 5/16
DKX-N4-5 #6-32 .226 .138 .138 .109 .064 .080 .109 3/8
DKX-N4-6 #6-32 .226 .138 .138 .109 .064 .080 .109 7/16
DKX-N4-7 #6-32 .226 .138 .138 .109 .064 .080 .109 1/2
DKX-N4-8 #6-32 .226 .138 .138 .109 .064 .080 .109 5/8
DKX-N4-9 #6-32 .226 .138 .138 .109 .064 .080 .109 3/4
DKX-N5-3 #8-32 .270 .164 .164 .141 .077 .093 .109 1/4
DKX-N5-4 #8-32 .270 .164 .164 .141 .077 .093 .109 5/16
DKX-N5-5 #8-32 .270 .164 .164 .141 .077 .093 .109 3/8
DKX-N5-6 #8-32 .270 .164 .164 .141 .077 .093 .109 7/16
DKX-N5-7 #8-32 .270 .164 .164 .141 .077 .093 .109 1/2
DKX-N5-8 #8-32 .270 .164 .164 .141 .077 .093 .109 5/8
DKX-N5-9 #8-32 .270 .164 .164 .141 .077 .093 .109 3/4
DKX-N5-10 #8-32 .270 .164 .164 .141 .077 .093 .109 7/8
DKX-N5-11 #8-32 .270 .164 .164 .141 .077 .093 .109 1
DKX-N6-3 #10-32 .312 .190 .190 .156 .090 .093 .140 1/4
DKX-N6-4 #10-32 .312 .190 .190 .156 .090 .093 .140 5/16
DKX-N6-5 #10-32 .312 .190 .190 .156 .090 .093 .140 3/8
DKX-N6-6 #10-32 .312 .190 .190 .156 .090 .093 .140 7/16
DKX-N6-7 #10-32 .312 .190 .190 .156 .090 .093 .140 1/2
DKX-N6-8 #10-32 .312 .190 .190 .156 .090 .093 .140 5/8
DKX-N6-9 #10-32 .312 .190 .190 .156 .090 .093 .140 3/4
DKX-N6-10 #10-32 .312 .190 .190 .156 .090 .093 .140 7/8
DKX-N6-11 #10-32 .312 .190 .190 .156 .090 .093 .140 1
DKX-N6-12 #10-32 .312 .190 .190 .156 .090 .093 .140 1-1/4
DKX-N6-13 #10-32 .312 .190 .190 .156 .090 .093 .140 1-1/2
DKX-N7-3 1/4-20 .375 .250 .250 .188 .120 .110 .150 1/4
DKX-N7-4 1/4-20 .375 .250 .250 .188 .120 .110 .150 5/16
DKX-N7-5 1/4-20 .375 .250 .250 .188 .120 .110 .150 3/8
DKX-N7-7 1/4-20 .375 .250 .250 .188 .120 .110 .150 1/2
DKX-N7-8 1/4-20 .375 .250 .250 .188 .120 .110 .150 5/8
DKX-N7-9 1/4-20 .375 .250 .250 .188 .120 .110 .150 3/4
DKX-N7-10 1/4-20 .375 .250 .250 .188 .120 .110 .150 7/8
DKX-N7-11 1/4-20 .375 .250 .250 .188 .120 .110 .150 1
